LSD Exam Report
- By Group L: Emmely (cph-el69) & Kristian (cph-kf96) & Daniel (cph-dh136) Report Description
Abstract
How to develop large systems. We set out to find out. We underwent a project spanning approximately 9 weeks of development and 6 weeks of maintenance. Here in, topics such as Scaling, monitoring, development collaboration, security, Continuous delivery / Dev ops, logging, deployment strategies and more are touched to accomplice the goal of developing and maintaining large systems. The project was based on a description, which was to make a clone of an existing service, Hackernews. We were tasked with requirements such as 95% uptime and not to lose any content from a simulator and more. We managed to do this task, with satisfied results according to self-evaluation.
Table of Content
Requirements, architecture, design and process
System requirements
The system was a minimal functional clone of the original Hackernews website, which was a system that allowed users to share and discuss stories with a focus on programming and information systems, the system allows self-regulation by allowing users to increase the visibility of some discussions, and for long time users to decrease the visibility of others.
The system had to handle multiple users posting stories and comments at the same time, while also having a minimum 95% uptime even while part of the system was down for upgrading. The system had to allow users to make a program that can simulate user interaction that creates stories and comments using a REST API, also to query the latest ingested story. likewise, the users should also be able to do these actions using a web browser as well.
Development process
Our choice for structuring our development process was greatly affected by our team size, as a 3 member team we had to pull more than the average 4-5 man team we were supposed to be in, but we took the challenge to better yourself as we had to be more involved with all parts of the system. We choose to run a mutated version of Scrum as the short development time and iterative development process was needed for a project with this short development cycle.
we could have gone with the waterfall model, but since our lectures would give new information on a weekly basis that we had to implement into the project this model wouldn’t allow for such implementation and was discarded, likewise the Unified process also discarded but not for the same reason, the unified process does allow for iterative development, but at the time we started the project we weren’t comepletly familliar with that development process, and we wouldn’t get the lecture until 3 days after we passed on the project for remote testing by another group, this made us choose scrum as it allowed us to keep ourself up to date on a day to day basis, and realocate resources depending on the ever changing enviorment, consisting of different courses and lecture material.
Software architecture
To give a better overview while reading about the Architecture, we’ll introduce the system in a short connected manner, with picture reference to help your reader to better navigate this system.
The system consists of 1 Core API that handles all activity from our teacher’s simulation program, it’s connected to a RabbitMQ that acts as a message buffer and the database which it only pulls data from. We also have an Angular website, which does all its backend interaction through another API dedicated to website activity, which also connects to the RabbitMQ and only pulls data from the database. Our Database Inserter connects to the RabbitMQ and the Database and acts as our message handler logic and database inserter. The database runs separately from the other systems on another server and acts as a database.
The architecture is located on an Ubuntu server hosted on the digital ocean service, it’s the main component is a REST API, which was designed to handle the specific commands our teachers simulator program would use, the REST API takes all messages that it receives and send them over to a RabbitMQ message broker channel, it then returns 200 response to the teachers program to conclude the transaction. this was done to reduce the number of commands that the REST API handles, which allowed us to improve the overall performance of the REST API. The REST API also connects to the database to get the information our teachers request, as they would request the latest harnest ID.
One requirement was to never lose any messages that were received, even when the database goes down, to avoid this we implemented our recently gained knowledge of message brokers from the System Integration course and designated a message broker service called RabbitMQ to handle the messages in channels. Our REST API quickly sends the message to the specified channel, where the RabbitMQ acts as a buffer between getting the message and inserting the message, messages will never go into the database if it’s down, but we can still receive messages, we won’t lose the messages in the buffer if the database is down and the REST API goes down as well, since the messages are in the RabbitMQ.
We also have a separate REST API that handles all Web-based communication, the choice for separating the communication of the website and the teacher’s simulator program was to further spread the load, since we wanted no interference with our teacher’s simulator and our digestion of the simulation. The web API is connected to an angular website, and has all the features of the other API, so the Angular website uses the same commands, but present a graphical user interface for all web browser users.
For handling the messages in the RabbitMQ buffer we implemented a database inserter named “DB Inserter slave”, it tries to take the first message in the message brokers channel, and process the information so it can insert it into the database, if the message is faulty it sends it to a dead end channel on the message broker, otherwise it’ll insert the data into the database as fast as possible.
Lastly, we have the database, which is a MySQL database on a separate Ubuntu server hosted on Digital ocean.
Software design
We made some basic diagrams to agree upon the systems operations.
Before we started developing, we had some concerns about the 2 different users who needed to interact with the system concurrently. 1 type of user is the human user, they were not restricting us in any way. We can decide what ID,s those users posts, comments etc. has, but for the other type of user, the simulator. The simulator wanted to decide what ID, “Harnest_ID” and “Post_parrent”. This would cause a problem if per say, the website user posted a comment and would occupy that ID, then an error would occur because the simulator insists upon deciding that ID. This was an integration challenge we needed to figure out. How should we fix the issue, that 2 different users where one of them would like to decide identifier beforehand.
The fix to this specific issue was to make 2 different interfaces. We made and decided upon the ID,s that we will be using. We made one interface for the website users and made one interface (API) that would translate the simulators ID,s into our own ID,s and Thread/Comment-ID,s. This way, we treat the data the same even for 2 different ways of interacting with the system.
Software implementation
Our system consists of the following software:
Front end software
Web application - written in TypeScript. The framework is Angular2+.
Backend
Core REST API - written in Go
Web REST API - written in Go
DBInsert slave - written in Go
DBInsert slave for Invalid Messages Channel - written in Java
How well did we follow the requirements we began with?
From the feedback we got from the teachers for our first hand-in of the Requirements and Analysis Document, RAD, we should not invent requirements and this was something we took to our heart. For this reason, we have put only the minimum and the requirements were almost fully implemented from the hand-in on November 2.
As we stated in the RAD document We will not put too much effort into the usability of the system since the main purpose, is that the system should be used via the API / Simulation program. Therefore the use of the web application will not be required to be exactly the same as hacker news..
We have not implemented:
UC1 - Create New Account.
Post condtion B: User is prompted that the user name has been taken. - Not implemented
UC2 - Login.
Exit condition:
A: The system responds by going back to the previous page the user was on. New links are added to the menu, links for an introduction to HN, threads and edit profile information. - Not implemented
How well did we followed the process we began with
We agreed upon having a project management system for our team where we would set up the task that needs to be done. ZenHub was a free online tool that we set up. It reminded of Atlassian JIRA. A project management one of the group members had good experience of. Unfortunately, we found out that the system had some bugs so we could not use it. We went over to Trello which had same functionality. This tool allowed us to set up stories of functionality and overall taskes that need to be done to implement the system This was also where we delegated tasked in areas we felt confident. A delegation of backend and frontend tasks and responsibility was made due to the different areas we felt comfortable in. After a few weeks with Trello, we felt it didn’t give us enough overview of which tasks were worked on and who’s doing what. We didn’t set up a notification system so we all need to go the online project management page. During the whole project and semester, our group has been using Discord. We discussed that we could drop the idea of project management system and use Discord only to communicate. Discord became our tool to communicate and mange the system. We use Discord to pin important messages, voice chat for meetings, saving credentials and direct chat communication.
In retrospect, we can attribute much of our project success to a good communication tool and our dedication to it. Another aspect of our process was the dividing up task according to areas where we were comfortable with. This didn’t force us outside our comfort zone.

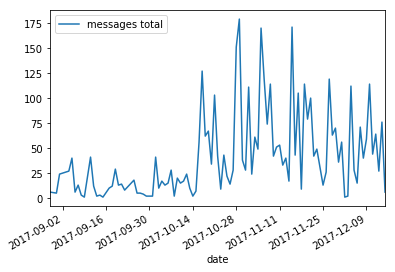

This graph shows our activity on Discord by total massages per date:
How well did we followed the software design we began with
Or design was to build a REST API, Messaging Queue, Database and Web Application. During what we could call elaboration phase we decided to divide up the REST API into two concerns (separation of concern). We incorporated this idea into the design. One API handling the Web Application and one handling the Simulator program. In retrospect, this was a good idea. For the simulator, we wanted to get a story but for the Web Application request, we wanted more information around those stories such as the number of comments, karma and time in “minutes ago” etc. Those calculations were a lot heavier. So in the Web API, we did the heavier calculation to serve a more user-friendly website.
Unexpected events/problems & Solution to the unexpected events/problems (a summarise)
The unexpected problems we faced as the number of request increased what that the database queries took to long time due to a unideal database design without foreign keys. There were some tables where we were unable to implement foreign keys. The original Database Inserter software were replaced with a new one that handles the insert in a different way with consideration to the slow database.
Another issue we also ran in to was invalid messages that crashed the system. This was fixed by a new component the DBInsert slave for Invalid Messages Channel that handle invalid messages.
System changed during the maintenance phase
Front end software
Web application - written in Angular2+ .
Very few changes were made after the hand-in and on November 2.
- A test with implementing front-end monitoring/logging with Rollbar.
- Updates in the API that need to be addressed.
Backend
Web REST API and Core REST API - written in Go
- We added functionality exposing metrics endpoints for Prometheus.
- Added our own way of logging.
DBInsert slave - written in Go
The DBInserter software was written initially in C#. The DBInserter is responsible for handling the messages(request) in the queue and inserting them into the database. Because we were using a Relational Database (without foreign keys) the DB inserter quickly (after just a few days with the simulator running) became our bottleneck. We made a few tweaks to the software to update it. But after spending too much time on this issue we replaced it with a new software written in Go that handles the insertions differently. The Go program hold the Database in memory so that insertions can be done directly without joins.
DBInsert slave for Invalid Messages Channel - written in Java
This program came to live after a few weeks into the project. We started to notice that the simulator send messages that our system couldn’t handle and that this often lead to a crash of our system. For this, we needed to create a new Inserter that could insert those invalid messages in a separate table in the database. We wanted to persist them even though they were invalid.
Maintenance and SLA status
Hand-over
Group I gave us a link to their GitHub repository with a Wiki page, e-mail address and where to look for Grafana, their monitoring of the system. We thought that the documentation we got was very adequate, well documented in a simple way, easy to read but still content full. We felt very equipped to operate and monitor their system from the start.
Service-level agreement
We made a service level agreement with another group (Group I) acting as operators. The full SLA can be found Here in the GitHub wiki section.
But to summarize a few parts of the SLA, here are some agreements:
Availability:
- Minimum expected 95% per month.
Response time:
- the maximum response time of service is 60 milliseconds.
To delve deeper into the SLA, it is advised to read the full version: Here
Other than that, there was no disagreement from the first iteration of the SLA and was signed at first proposal.
Maintenance and reliability
Both us as operators and the developers of the system, was initially confused about how much access we were supposed to have access to, but the developers was quick both in written format and personal meetings, allowing for communication with us operators, this allowed for quick and responsive reactions to every incident that happened, doing the time we as operators where tasked to monitor the system.
We implemented alerts for when the system would go down, but our primary way of operation was to actively passive monitor, as in we would on regular occasions take a look on the passive monitor system Grafana, allowing us to catch abnormalities that would happen without our or the developer’s knowledge.
Although some incidents haven’t been reported in written format, as we in many cases reported breaches of the Service level agreement in person, we will show the following cases we did write down and explain each case individually.
to save space in the report you can read about all 19 written issues here
Concluding on the developer’s cooperation.
The group we were operators for where actively discussing and reacting in a very consistent and fast manner, their reaction time and positive feedback to our reports both written or verbal where fast, and their grafana system proclaims 94.964%, however, it doesn’t showcase the general uptime from the lost data in the earlier stages, which was above 95% active state.
Discussion
Technical discussion
First part: the good
Angular2+ was a really good choice of technology for developing the Web Application. Some of the powerful features of the framework was being able to develop the application with a dummy API.
A lot of modules and build in functionality to handle routing logic and form validation.
Doing our initial design phase we were contemplating upon how much we would focus, since we did feel confident in how much we could achieve due to our combined enthusiasm, but when we presented our early version of our RAD (requirements analyses document) to our teacher for feedback, we were told to tone down our expectation, which leads to a minimalistic approach to the requirements, this was absolutely a good direction as we were only 3 in the group where it was expected we were 4-5.
From the very beginning, we used a communication application called discord, the reasoning was for higher level connection even when we weren’t at school, the application had both text and voice communication and allowed for us to take notes and share these. This was crucial to our success as a 3 man group, since the downtime between rapid changes and our mutated scrum model, allowed for rapid response to changes and continues discussion and development from the comfort of our homes.
Our architecture was made very solid from the start due to our lectures in System Integration, the lessons in message brokers and low coupling development, allowed for a very flexible development cycle, as we could and did change individual components doing the LSD projects lifespan, another benefit with low coupling, was our ability to implement multiple languages from each members preference, this allowed our 3 man group to work at optimal levels doing the project.
Software tools like Git and Jenkins also helped immensely, as they allowed us to structure and deploy changes, without having a single person dedicate too much time, which could have resulted in our workforce getting cut down to 2 members otherwise.
First part: the bad
We promised to have everyone in the group touch every part of the project so that we all could improve our skills in all subject matters since we were 3 member team, each member needed to know how the project worked, and we wanted everyone to specifically be able to recreate the system single-handedly. Time restraint trashed that dream, we were unable to delegate the varied task doing our development of the project, as the time constraints and the 3 man size couldn’t keep up with the expected 4-5 man development performance.
Our limited experience with databases and specifically relational database, was a huge problem for us doing the development, we where underestimated how much trouble the database would give us, and we didn’t know how to implement it correctly, lacking foreign keys and relations in a relational database, resulted in extreme expenses on hosting the database on a digital ocean service, while also proving quite a challenge in making temporary solutions to persistent problems, that we struggled with throughout the entire project’s lifespan.
Second part:the good
Our initial introduction to the group we would be monitoring was fantastic, they were both friendly and intend on a high-level communication level throughout the project’s lifespan.
Their monitoring systems setup had a great overview, which gave an excellent view of their systems performance, allowing us the needed tools to monitor and alert them when needed. Thier response rate to all issues we presented both oral and written was fast, and their communication on each issue was informative, which helped the positive and constructive mood between them as developers and us as operators.
Second part: the bad
When we received their project and the system level agreement, their project wasn’t exactly finished, and they did break their system-level agreement a few times due to these issues.
Group work reflection & Lessons learned
Maintenance is crucial for large systems, both for developers peace of mind and productivity, and also to maintain a contract between developer and customer. Quality of the product is highly affected by its performance, and generally the most cost of a product comes from maintaining it after launch, this can be reduced by implementing a strong foundation for monitoring the system’s performance.
System integration is very powerful for product flexibility, as it allows ongoing improvement and replacement of components after launch, this has great cost initially for its implementation but pays back immensely in the maintenance stage of a product.
Reckless implementation or use of tools and features can cripple products, although time constraints might force these scenarios, it’s important to focus on studying the tools so that you can either replace or improve them before they do damage to the product.
