h5v

Install v0.13.1

Published on Jul 5 2026 at 07:20 UTC

msi
binstall
cargo
shell
zip

```
cargo binstall h5v
```
```
cargo install h5v --locked
```

A terminal-first HDF5 explorer for charts, matrices, images, compound schemas, and scripted workflows.

curl -fsSL https://raw.githubusercontent.com/DanielHauge/h5v/main/install.sh | sh

The shell installer works on Linux, macOS, and POSIX-style Windows shells such as Git Bash, MSYS2, and Cygwin.

h5v is a Rust TUI for inspecting HDF5 files in the terminal: browse the tree, switch between preview, matrix, and heatmap views, inspect image datasets inline, drill into compound fields, edit attributes in write mode, and script startup workflows. CSV, TSV, XLSX, and Parquet files can also be opened; h5v imports them into cached HDF5 snapshots on launch so they work with the same tree and chart flows.

What it looks like

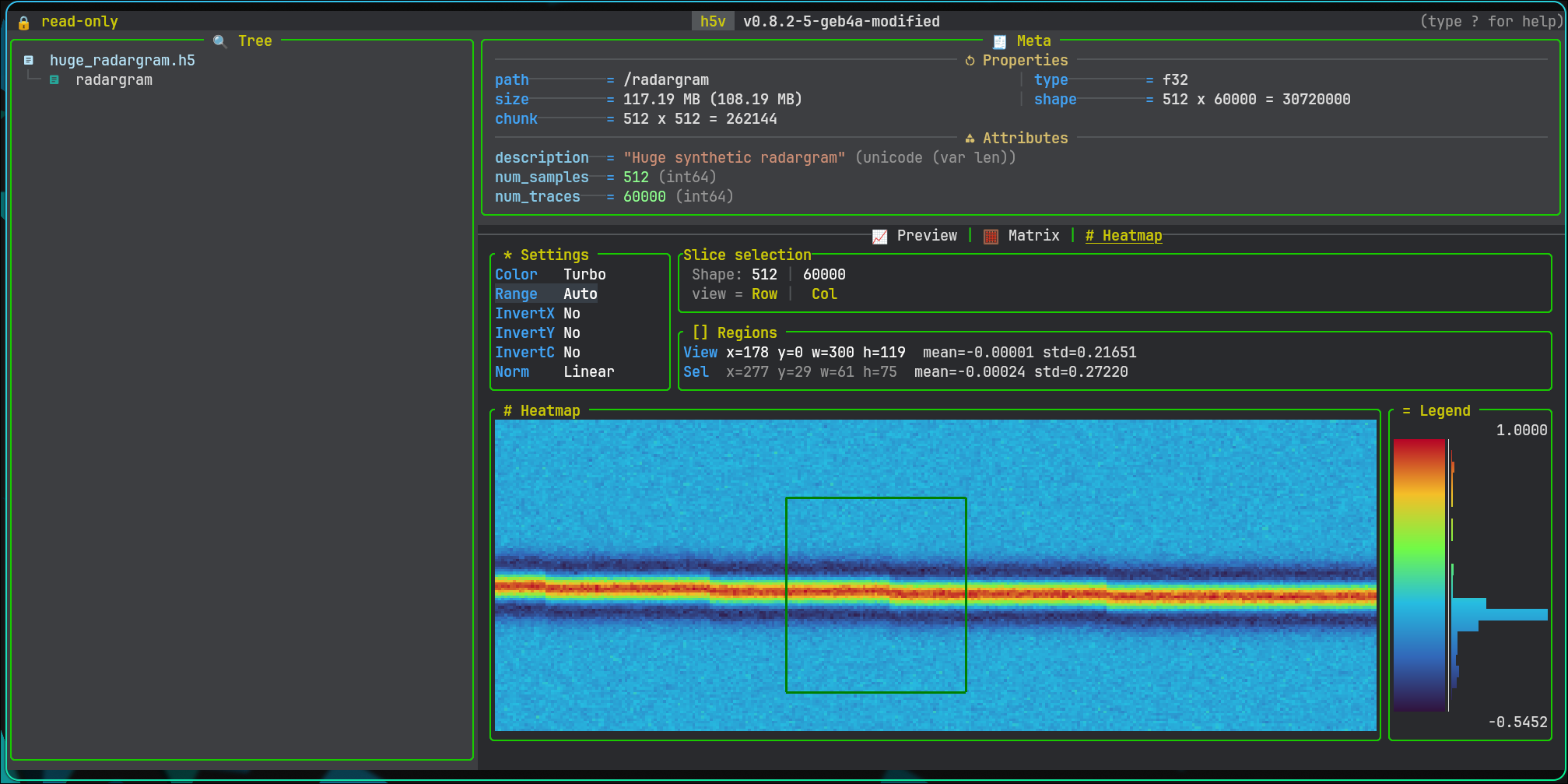

Charts	Heatmap	Images

Multichart	Commands	Help

Highlights

Tree browsing for datasets, groups, links, and projected compound fields.
Preview, matrix, heatmap, image, and schema views from the same selection.
In-place edits when the file is opened with -w.
Startup automation with commands, scripts, and press ....
Derived series and comparisons in multichart.

Quick start

If you do not have an h5 file, you can download an example:

curl -fsSL https://raw.githubusercontent.com/DanielHauge/h5v/main/examples/h5v-example.h5 -o h5v-example.h5

Open a file in read-only mode:

h5v h5v-example.h5

Read a file that may already be open in another process:

h5v --read-mode auto live-data.h5

--read-mode auto tries normal read-only first, then SWMR read-only, then a copied snapshot fallback.

Open imported tabular files through the import pipeline:

h5v data.csv
h5v reference.h5 experiment.tsv
h5v workbook.xlsx metrics.parquet

If your terminal renders icons, line drawing, or graphics previews badly, start in compatibility mode:

h5v --compatibility h5v-example.h5

That switches the UI to simpler symbols and disables terminal graphics previews. To make it the default, set H5V_COMPATIBILITY_MODE=true in your shell rc file.

Open the same file in write mode so edits are allowed:

h5v -w h5v-example.h5

Themes, symbols, and heatmap defaults are configured in Lua. Inside h5v, run :configure to open init.lua, or :configure reset to regenerate the default scaffold.

Start with scripted commands:

h5v examples/h5v-example.h5 \
  -c "goto /matrices/cube" \
  -c "focus content" \
  -c "mode matrix"

Validate a startup script without launching the UI:

h5v path/to/file.h5 --script-test --script setup.h5v

Try the bundled example file and walkthrough script from this repository:

h5v examples/h5v-example.h5 --script examples/h5v-example.h5v

Regenerate the example file after editing the generator:

python scripts/generate_example_h5.py

Installation

Method	Command
Shell installer	`curl -fsSL https://raw.githubusercontent.com/DanielHauge/h5v/main/install.sh \| sh`
PowerShell installer	`irm https://raw.githubusercontent.com/DanielHauge/h5v/main/install.ps1 \| iex`
Homebrew	`brew tap DanielHauge/h5v https://github.com/DanielHauge/h5v.git && brew install h5v`
Scoop	`scoop bucket add h5v https://github.com/DanielHauge/h5v && scoop install h5v/h5v`
cargo-binstall	`cargo binstall h5v`
Cargo source build	`cargo install h5v`

On Windows, install.ps1 installs into %LOCALAPPDATA%\Programs\h5v\bin and adds that directory to the user PATH.

On Ubuntu 22.04, install the validated source-build prerequisites before cargo install h5v:

sudo apt-get update
sudo apt-get install -y --no-install-recommends \
  build-essential cmake pkg-config libfontconfig1-dev libfreetype6-dev libexpat1-dev

Other Linux distributions need the equivalent compiler toolchain, CMake, pkg-config, and fontconfig/freetype/expat development headers.

Configuration and plugins

Configuration lives in init.lua.

:configure
:configure reset

:configure opens the config file and reloads it on exit.
:configure reset writes a fresh scaffold.
--config <PATH> uses a different config file.
--init-plugin <PATH> creates a plugin scaffold. Rerun it to refresh .luarc.json and .h5v-luals/h5v.lua without overwriting h5v-plugin.toml or lua/init.lua.

Plugins are loaded from init.lua with h5v.plugins.use(...) and can come from:

a local path
owner/repo
a git URL

Use the in-app help as the source of truth for commands, keymaps, actions, health, and plugin status.

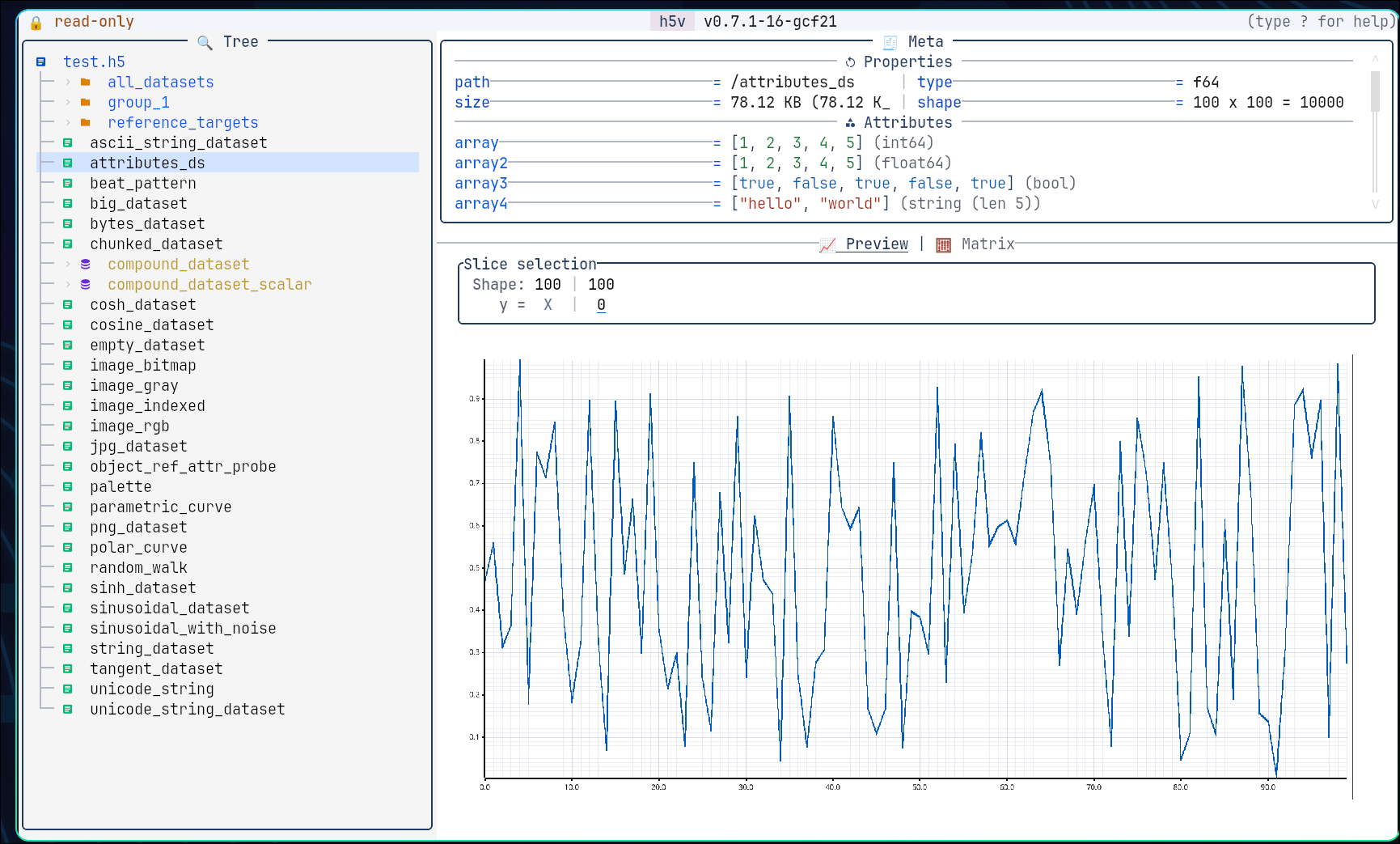

Light theme configuration example

Documentation

The manual is published at danielhauge.github.io/h5v/book, and the source lives in docs/src.

Inside h5v, press ? for keybindings, commands, multichart, heatmap, health, and customization help.
The in-app help is the primary reference for controls and command behavior.
Overview
Quick start
Configuration
Plugins
Heatmap
Multichart

Core interaction model

Shift + arrow keys or Ctrl+W then h/j/k/l move focus between panes.
Tab cycles content modes when more than one is available.
: opens the command minibuffer, . repeats the last command, and ? opens the in-app help overlay.
m adds the current previewable selection to multichart and M opens multichart mode.
s toggles the sidebar, / enters search, and Ctrl+R reloads the file from disk.
