Configuration

h5v loads init.lua at startup.

If the file is invalid, h5v keeps running, shows a warning toast, and marks the header with a config warning badge until the configuration loads cleanly again.

Config file location

init.lua lives under your platform config directory:

Linux: ~/.config/h5v/init.lua
macOS: ~/Library/Application Support/h5v/init.lua
Windows: %AppData%\h5v\init.lua

If it does not exist, h5v creates it.

LuaLS sidecar files are generated next to it under .h5v-luals/. h5v.lua is refreshed automatically. .luarc.json is refreshed only while h5v manages it.

Commands

Command	What it does
`configure`	Opens `init.lua` in `$VISUAL` or `$EDITOR`, then reloads the configuration when you exit the editor.
`configure reset`	Replaces `init.lua` with a fresh default scaffold, then reloads it immediately.

Start here

Most configs only need these fields:

h5v.theme
h5v.symbol_theme
h5v.content_mode_order
h5v.compatibility
h5v.heatmap.*
h5v.keymaps
h5v.colors
h5v.symbols

For all keys, scopes, themes, and accepted color names, see Configuration reference.

Keymaps

Keymaps live in h5v.keymaps.

Scopes:

global
normal
window
tree
content
heatmap
attributes
mchart

Precedence:

heatmap
content / tree / attributes / mchart / window
normal
global

Each scope supports:

clear_defaults = true to remove shipped bindings for that scope
unbind = { "key", ... } to remove selected shipped bindings
bind = { { key = "...", action = "..." }, { key = "...", command = "..." } }
bind(mode, key, action[, description])
bind_command(mode, key, command[, description])
bind_commands(mode, key, commands[, description])
bind_script(mode, key, script[, description])
bind_lua(mode, key, callback[, description])
unbind(mode, key)

Use h5v.modes.* and h5v.actions.* constants in Lua. Examples: h5v.modes.Global, h5v.modes.Heatmap, h5v.actions.ShowHelp, h5v.actions.HeatmapZoomIn.

Example:

bind(h5v.modes.Global, "ctrl+h", h5v.actions.ShowHelp, "Show help")
unbind(h5v.modes.Heatmap, "v")
bind_command(h5v.modes.Heatmap, "ctrl+alt+r", "heatmap range use \"Clip 1-99%\"")
bind_commands(h5v.modes.Global, "ctrl+k", { "down 2", "up 1" })
bind_script(h5v.modes.Global, "ctrl+s", "down 2\nup 1")
bind_lua(h5v.modes.Global, "ctrl+l", function(ctx)
  ctx.command("help reload")
end)
bind(h5v.modes.Heatmap, "ctrl+z", h5v.actions.HeatmapZoomIn)

Heatmap defaults

Heatmap settings live under h5v.heatmap:

default_range
default_colormap
default_normalization
default_invert_x
default_invert_y
default_invert_c
range_modes

Example

h5v.theme = "light"
h5v.content_mode_order = { "matrix", "preview" }
h5v.symbol_theme = "compatibility"
h5v.compatibility = true

h5v.heatmap.default_colormap = "inferno"
h5v.heatmap.default_normalization = "log"
h5v.heatmap.default_invert_c = true

bind(h5v.modes.Global, "ctrl+h", h5v.actions.ShowHelp)

h5v.colors.accent.selection_bg = "#e1c878"
h5v.colors.tree.group = "#d26c00"
h5v.colors.surface.panel_border = "#1e3755"

h5v.symbols.tree.dataset_link_icon = "D@"
h5v.symbols.tree.load_more_label = "v Load more"
h5v.symbols.title.matrix_tab = "Matrix"
h5v.symbols.chart.visibility_visible = "*"

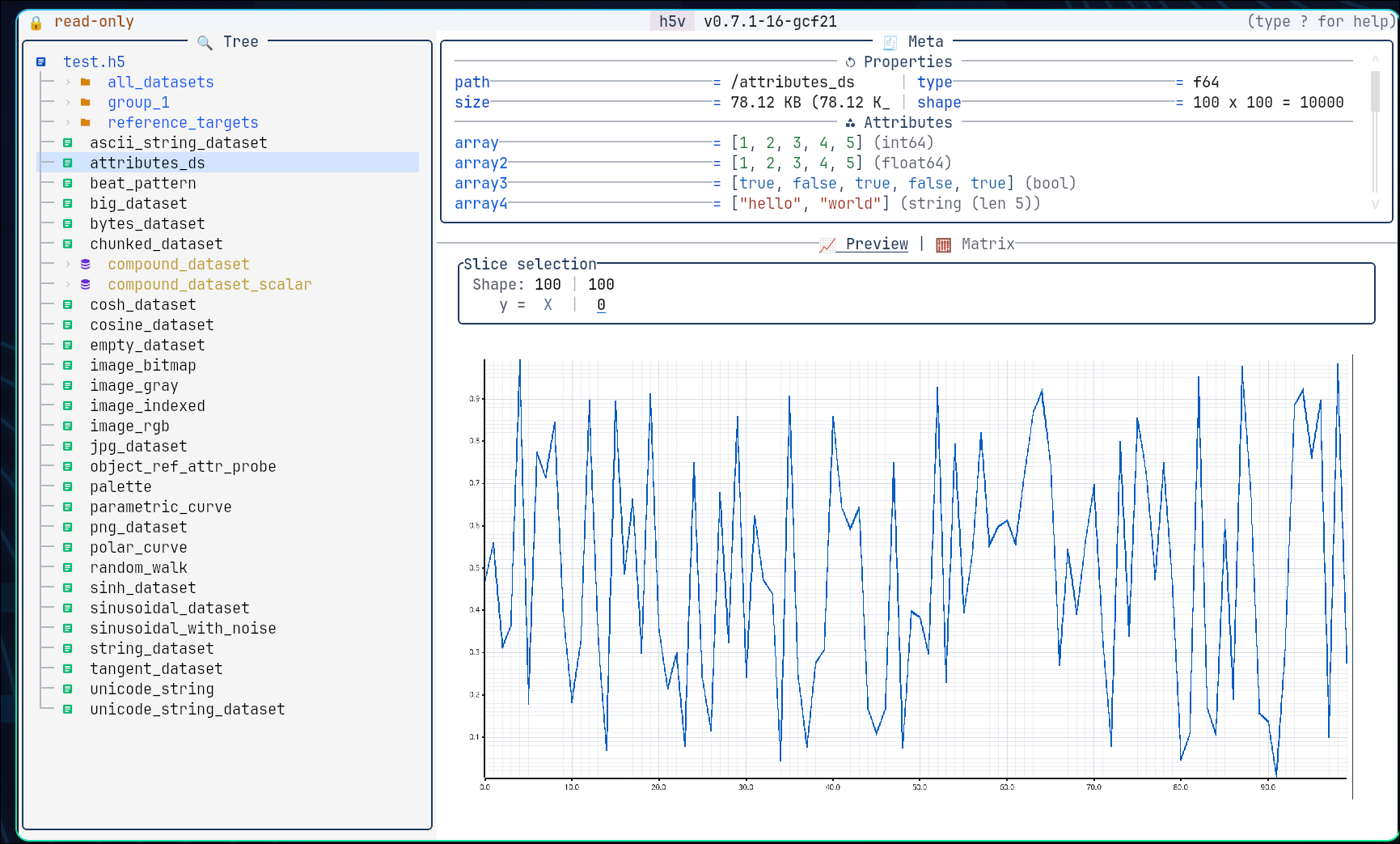

The built-in light theme is a good starting point for a bright palette plus a few targeted overrides:

Light theme example

Use h5v.themes.<name> and h5v.symbol_themes.<name> as built-in catalogs when you want to copy values from a shipped theme.
