Multichart

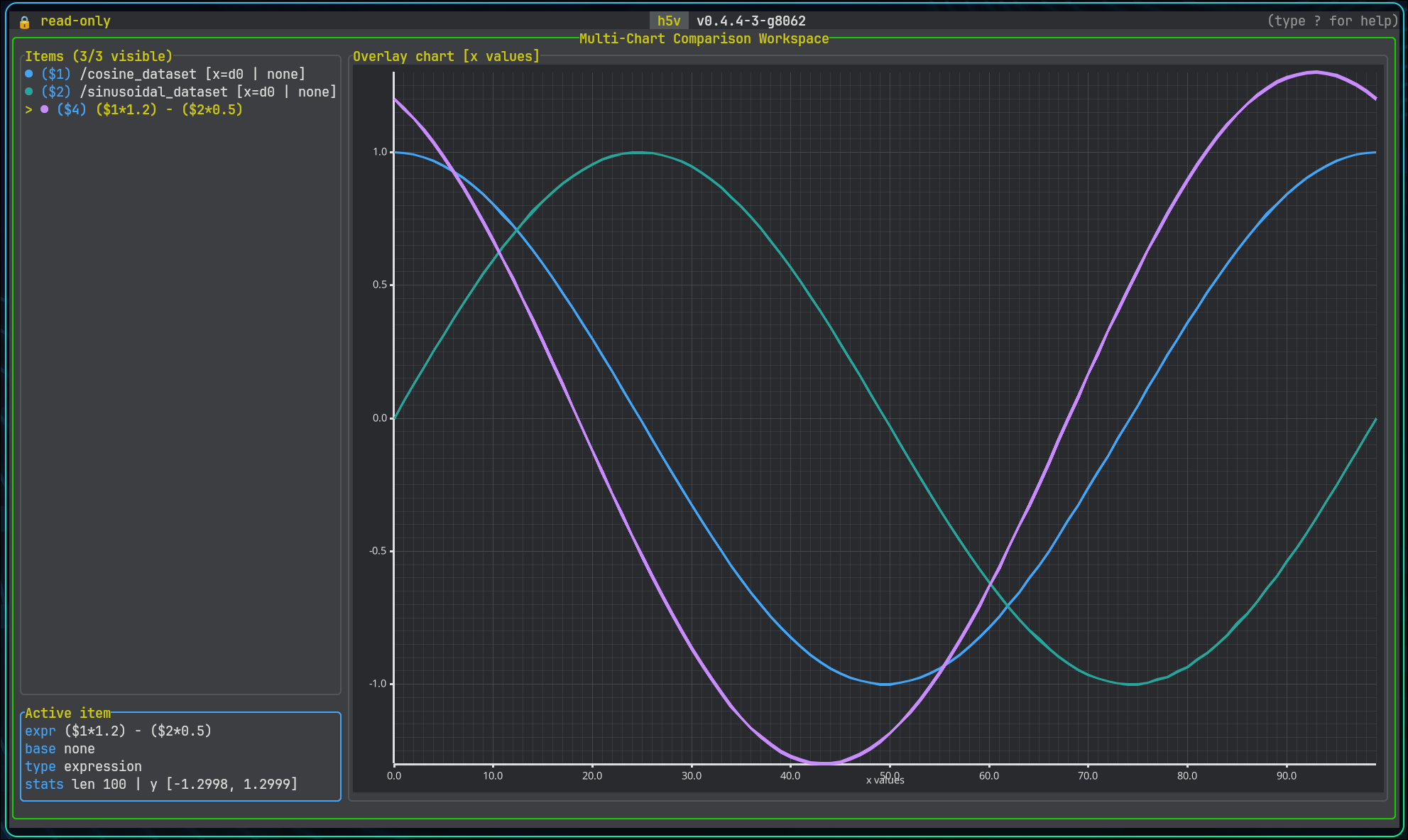

Multichart workspace

Multichart is the comparison workspace for previewable series.

Sources:

  • the currently selected previewable tree selection
  • an explicit dataset reference
  • an expression-defined series

Basic workflow

  1. Add a series with m or mchart add ....
  2. Press M or run mchart open to enter the workspace.
  3. Press Enter to open a new expression, or e to edit the selected series.
  4. Build derived series with expressions such as $1 - $2, ($1, !/time[..]), or $1[0..256].
  5. Use zoom and pan to inspect the area of interest.

Groups with H5V_PREVIEW_EXPR also work here. Pressing m on /group_preview adds the group preview expression as a chart item.

Expression editor

  • Enter opens a new expression without changing the chart viewport
  • e edits the selected series in place
  • Enter submits the current expression
  • Tab completes the selected suggestion
  • Up and Down move through suggestions while editing
  • Esc closes the editor

The editor validates expressions live and suggests chart item ids, dataset paths, and attribute references.

Raw dataset references such as !/big_dataset[..] are queued and loaded in the background when submitted. Zoomed dataset-backed views can request a denser viewport sample in the background while the coarse overview stays visible. Derived series can also refine to viewport detail when their referenced chart-item inputs share the same loaded detail window.

Config

Use h5v.multichart = { ... } in Lua to tune large-series behavior.

  • overview_max_samples limits the initial background overview sample
  • detail_enabled turns viewport-driven detail refinement on or off
  • detail_samples_per_column scales viewport detail against chart width
  • detail_min_samples and detail_max_samples clamp viewport detail size
  • detail_padding_ratio loads extra x-range around the visible viewport
  • derived_detail_enabled lets derived series refine when inputs share the same detail window

Visibility and organization

  • move through chart items with j / k
  • hide or show an item with Space or v
  • remove the selected item with d, Backspace, or Delete when nothing depends on it
  • clear the whole workspace with C
  • open multichart help with ?

Zoom and pan

  • +, =, or Shift+Up to zoom in
  • - or Shift+Down to zoom out
  • h / Shift+Left to pan left
  • l / Shift+Right to pan right
  • f to fit all visible series
  • F to fit the selected series
  • c to reset zoom

Mouse interaction follows the same anchored viewport model as heatmap:

  • wheel zoom over the plot anchors to the hovered point
  • plain wheel zoom changes both x and y
  • Ctrl + wheel zoom changes x only
  • Shift + wheel zoom changes y only
  • right-click drag snapshots on press and pans on release

The same actions are available from the command line, including mchart fit ... and axis-specific zoom like mchart zoom x in 20.

Expression workflows

See Multichart expressions for syntax and Command reference for the full mchart command surface.
